Cordless riveter R2B2

Cordless riveter R2B2

・For high-strength construction rivets.
・For Φ6.4 mm stainless steel rivets.
・High-speed, high-powered for easy riveting.
・Fastest riveting cycle time in its class.

Use/Application




　※１ Cycle time achieved when riveting Lobtex Φ6.4 mm stainless steel rivets with a fully charged battery pack mounted on the riveter.
　※２ When the included battery pack is mounted on the riveter.
　※３ The riveter is shipped with the nosepiece (6.4), guide pipe unit (6.4) and ball screw joint collar (6.4) preassembled.


　※ Charging time will vary with battery pack and charging (ambient temperature, etc.) conditions.
　※ The R2B2 works also with the BPL1820 and BPL1840 used to power the Lobtex R2B1 cordless riveter.


　※ Same charger included with the Lobtex R2B1 cordless riveter.

　Download Manual
　↓　↓　↓
　Download ( Cordless riveter R2B2 )

ROHSCE

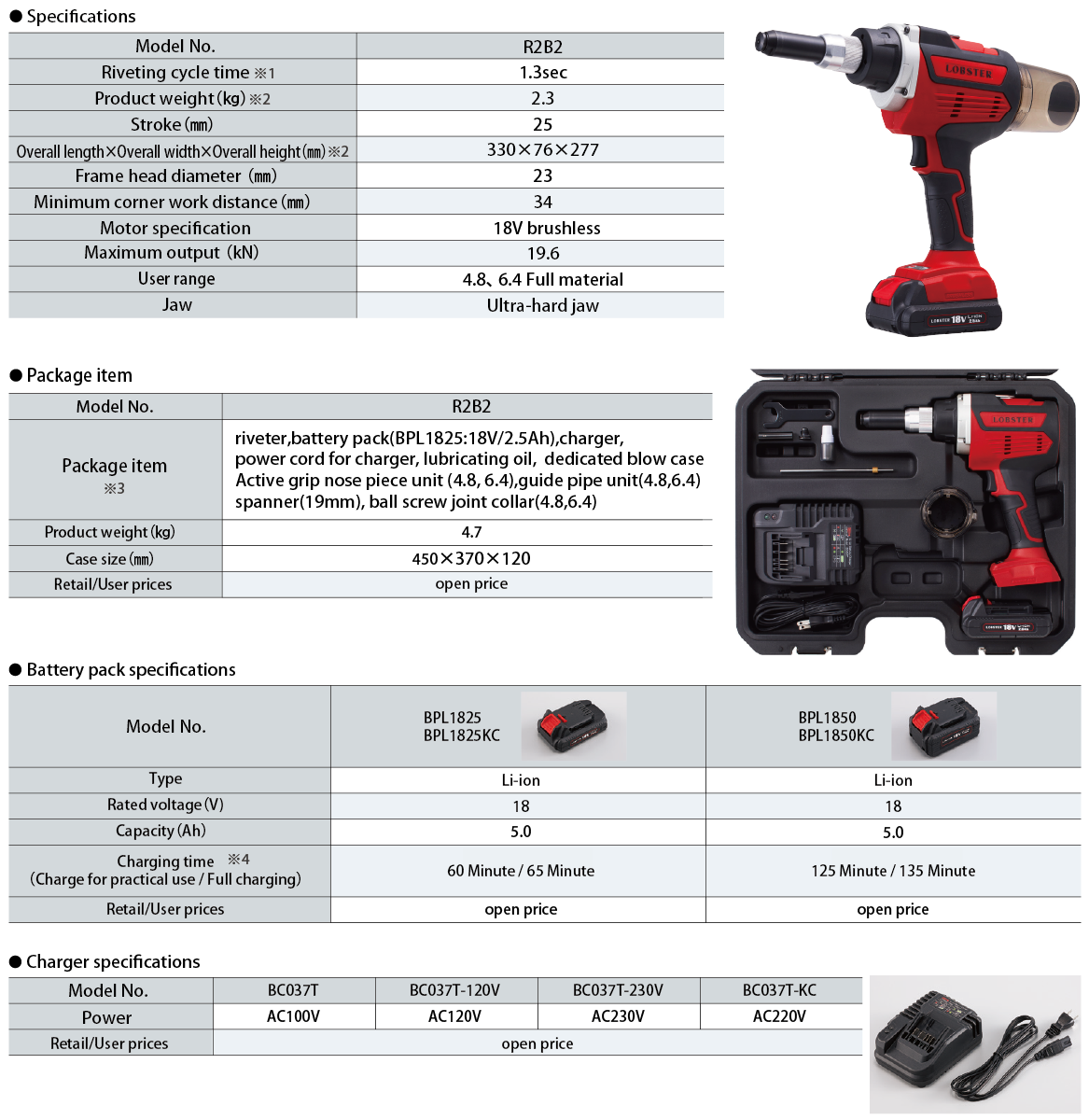

Specifications

Cordless riveter R2B2

Model No. (Product) weight size1 size2 size3 size4 size5 size6 size7 size8 Retail/User prices
R2B2 2.3kg 330mm 277mm 70mm 59mm 23mm 33mm 34mm 76mm open price
BPL1825 400g open price
BPL1850 700g open price
BC037T 395g open price

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
