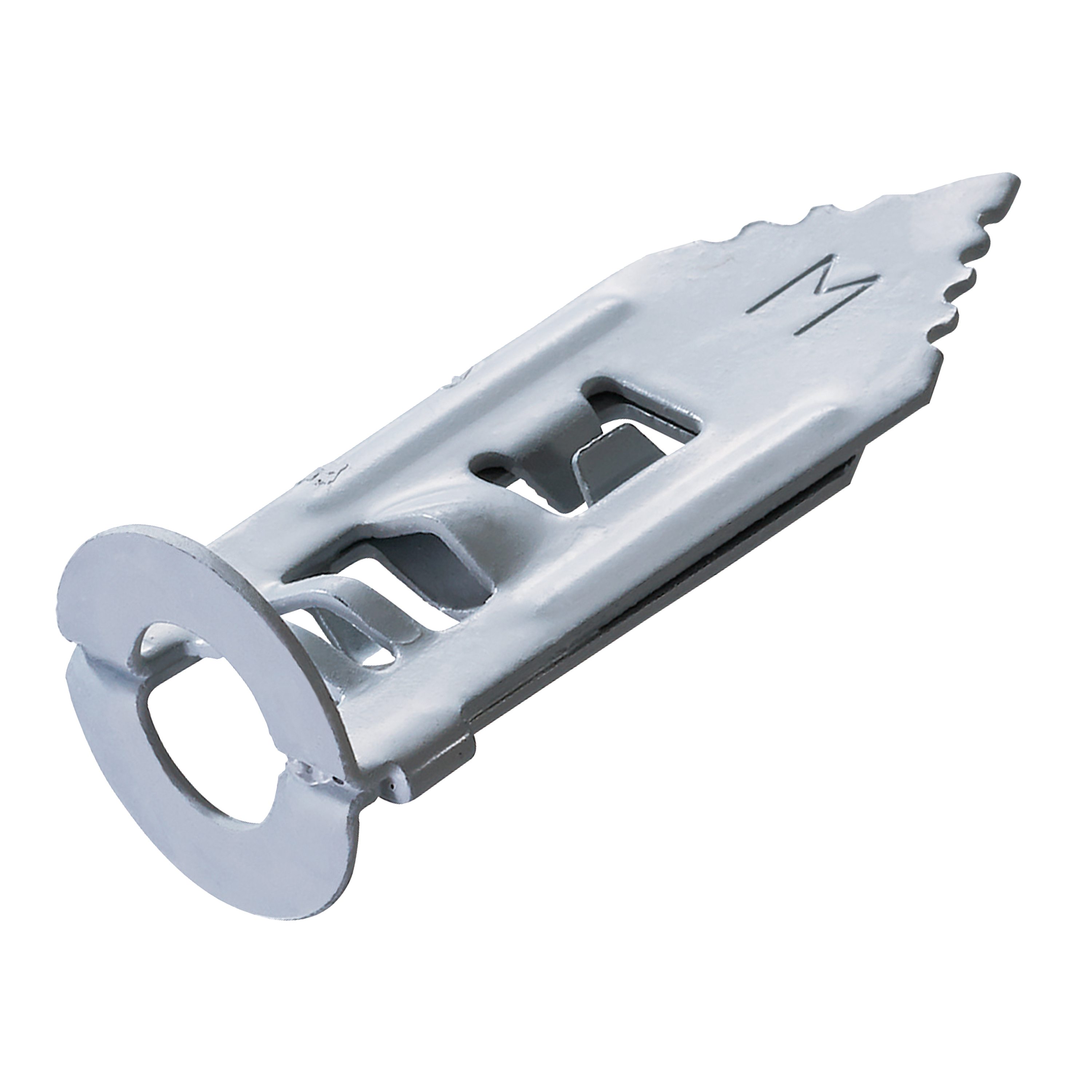

LOBSTER mungo drive board anchor MSN

LOBSTER mungo drive board anchor MSN

Prepared holes are not required!

・Work is enabled simply by driving the anchor with a hammer.
・The anchor is white, which is not conspicuous after work.

Use/Application

・ For attaching equipment to a wall base material such as plaster board (JIS: GB-R) of 9 to 12.5 mm
    thickness, and plywood board (lauan plywood) of 4 to 5.5 mm thickness.
・ Owing to a small, thin white head, the anchor enables inconspicuous work.
・ During installation, little swarf and dust are generated. Peeling of wallpaper can be reduced.
・ The holding strength of the drive anchor is equivalent to that of screw type anchors. This product includes
    a screw, providing excellent cost efficiency.
・ The drive anchor eliminates concerns over idle rotation due to excessive screwing, unlike with screw type
    anchors.
・ Screws can be easily repositioned before driving because removed anchors cause minimal damage.

ROHS

Specifications

LOBSTER mungo drive board anchor MSN

Model No. size1 size2 Q'ty/ carton Material, Surface finishing Retail/User prices Remark
MSN 29.5 mm φ10.9mm 100sets Steel (Surface treatment: White coloring) open price Accessories:Tapping screw(truss)4×25
Applicable screw diameter:φ3.5~5.0 Tapping screw
Applicable screw length:Target object+20mm or more
MSNK 29.5 mm φ10.9mm 200sets Steel (Surface treatment: White coloring) open price Accessories:Tapping screw(truss)4×25
Applicable screw diameter:φ3.5~5.0 Tapping screw
Applicable screw length:Target object+20mm or more
MSNPSET 29.5 mm φ10.9mm 20sets×12packages Steel (Surface treatment: White coloring) open price Accessories:Tapping screw(truss)4×25
Applicable screw diameter:φ3.5~5.0 Tapping screw
Applicable screw length:Target object+20mm or more

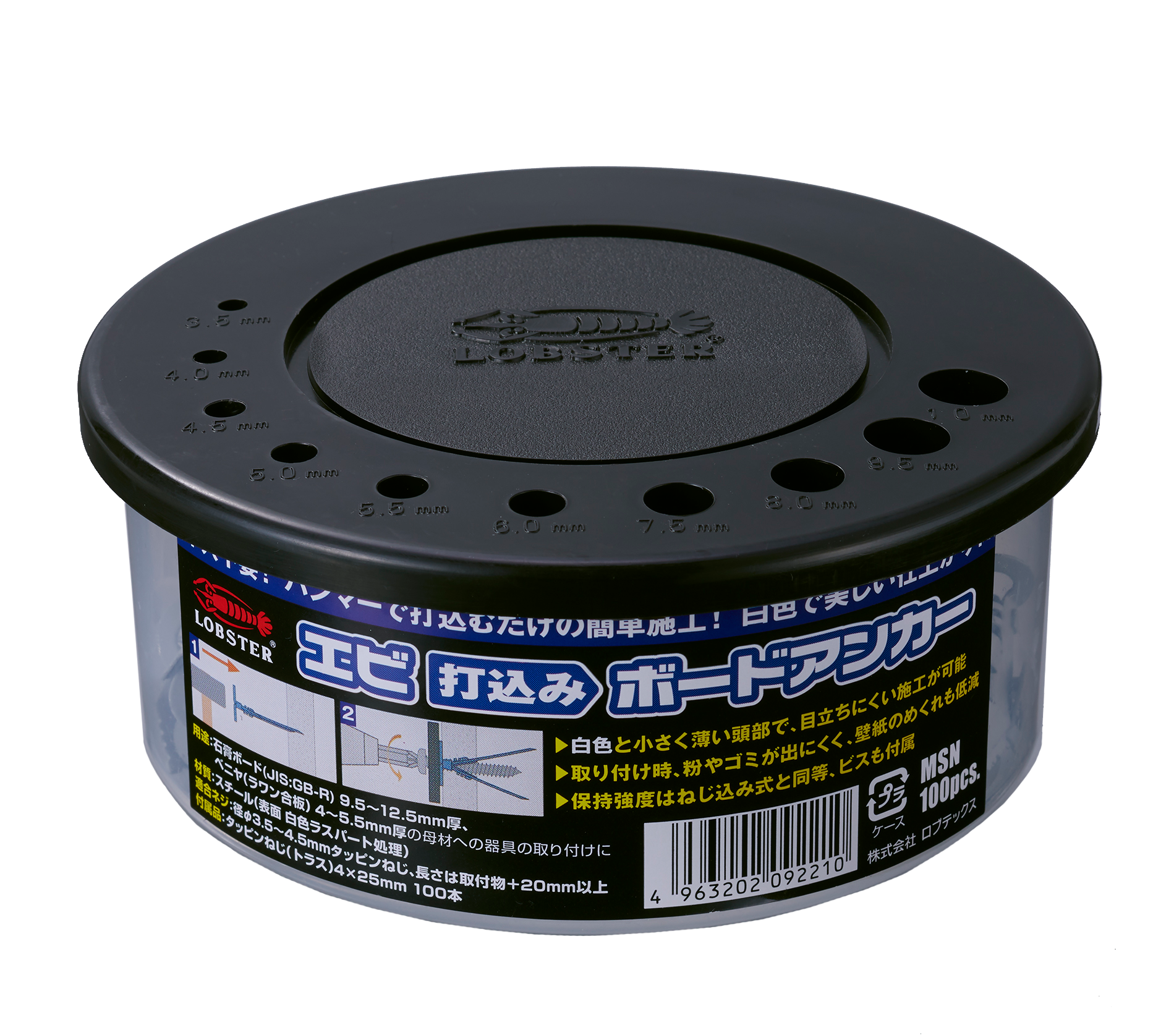

  • Contained in bottle(MSN)

    Contained in bottle(MSN)

  • Contained in case(MSNK)

    Contained in case(MSNK)

  • Mount base is attached(MSNPSET)

    Mount base is attached(MSNPSET)

!IMPORTANT SAFETY INSTRUCTIONS

・Use this anchor for hollow walls that have space at the back of plaster board or plywood board.
・This anchor cannot be used for hard plaster board (JIS: GB-R-H).
・Do not use this anchor in a direction under downward load, such as on ceilings.
・Do not use an impact driver during installation.
・Use thorough caution not to hit or tighten the anchor excessively.

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
