Cordless riveter R2B1

Cordless riveter R2B1

Ultra-high-speed riveting, equivalent to fastest air riveter*1
Excellent usability. Lightweight body causes less arm fatigue.

・Riveting cycle time
 Lobtex conventional model R1B1: 1.7 sec. ⇒ R2B1: 0.8 sec.
 (High speed equivalent to that of Lobtex’s fastest air riveter R1A1)
・Comparison in weight of cordless riveter (including battery)
 Lobtex conventional model R1B1: 1.9 kg ⇒ R2B1: 1.7 kg
 (200 g weight reduction!)
* Lobtex air riveter R1A1

Use/Application


【Functions







Download Manual
↓ ↓ ↓
Download(Cordless riveter R2B1)

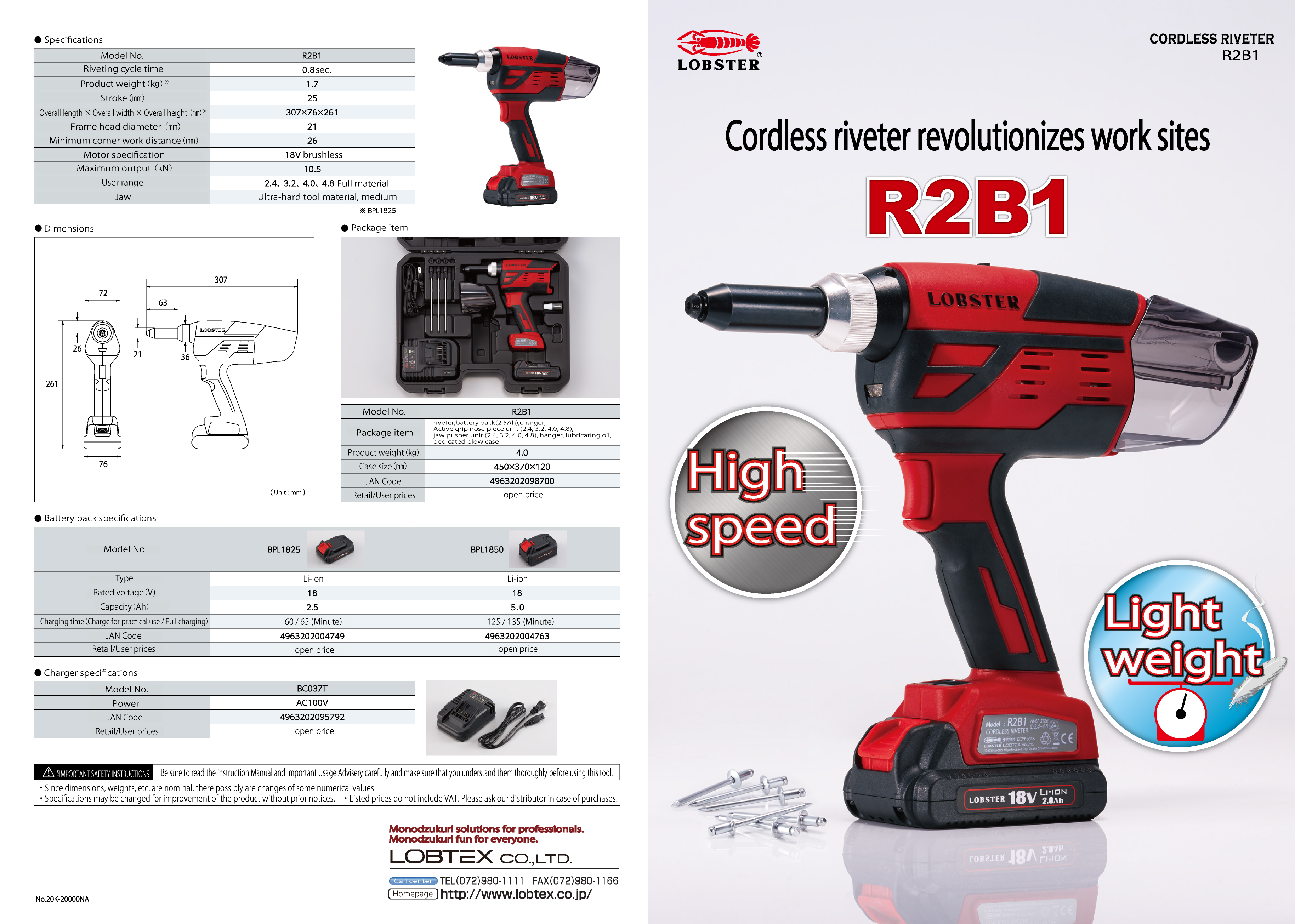

Download Leaflet
↓ ↓ ↓



ROHSCE

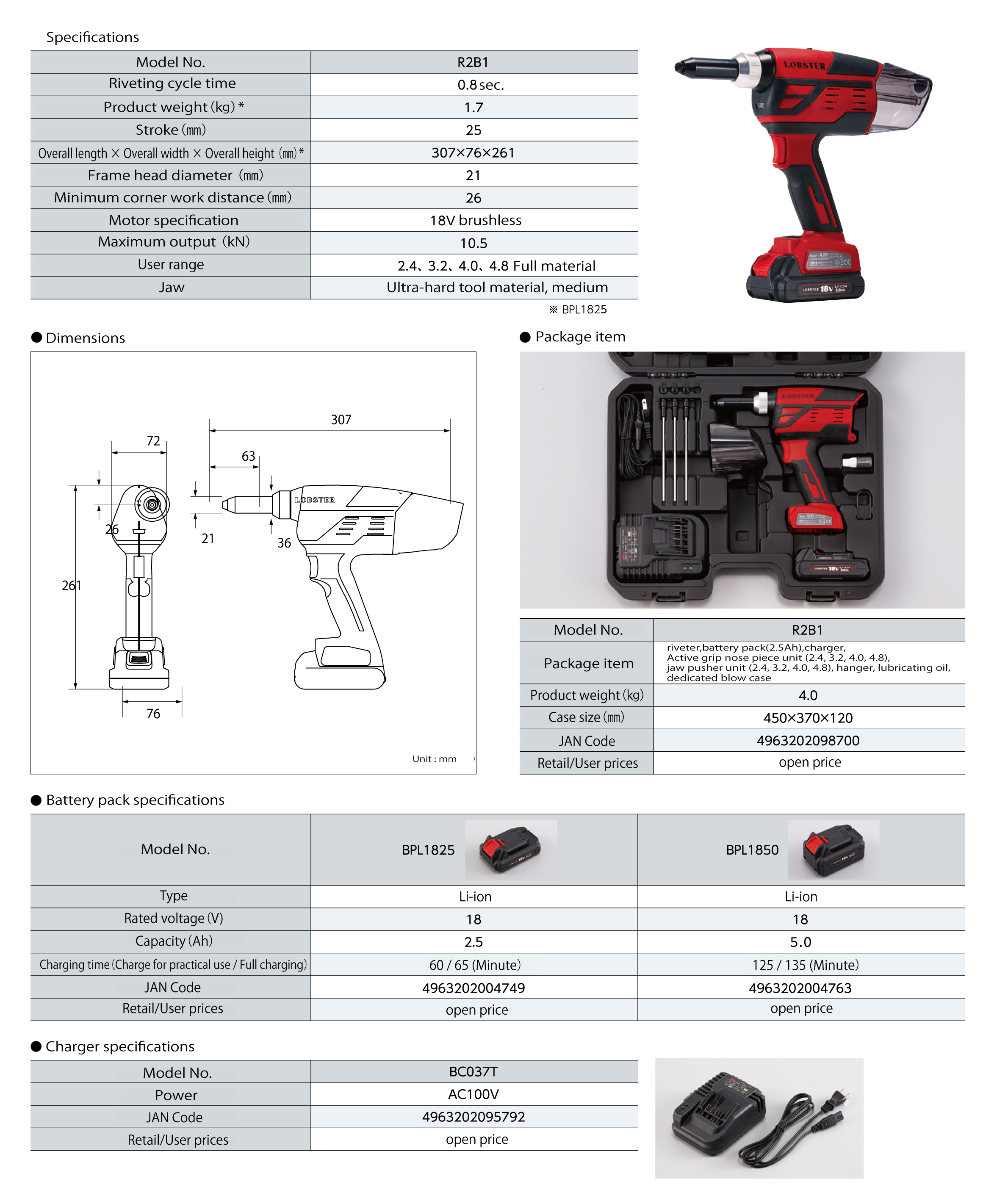

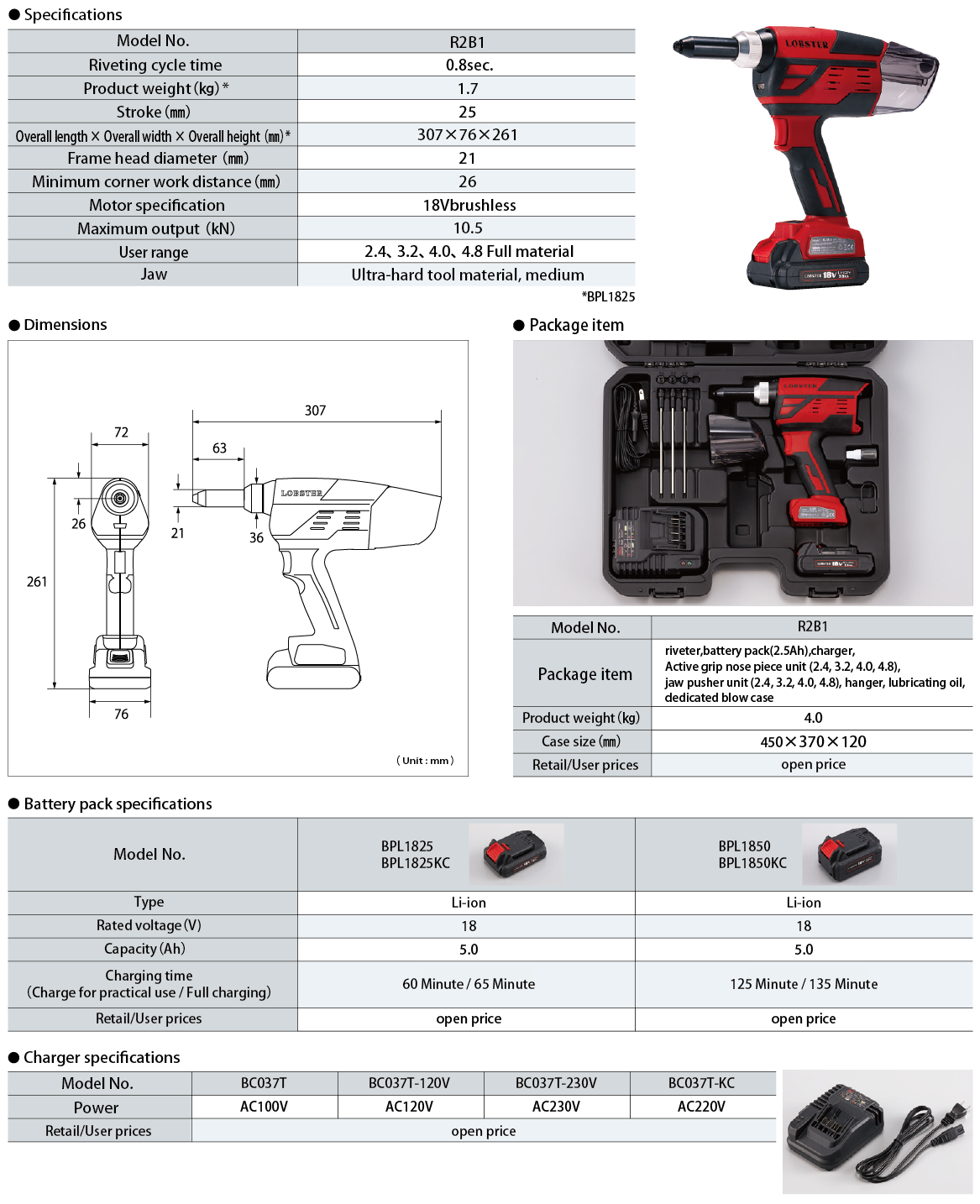

Specifications

Cordless riveter R2B1

Model No. (Product) weight size1 size2 size3 size4 size5 size6 size7 size8 Set details Use range Operating air pressure Usage jaws Traction power Q'ty/ carton Retail/User prices Remark
R2B1 1.7kg 307mm 261mm 21mm 72mm 63mm 26mm 36mm 76mm riveter、battery pack(2.0Ah)、charger、A active grip nose piece unit、jaw pusher unit、hanger、lubricating oil、dedicated blow case φ2.4・3.2・4.0・4.8mm - CJM 10.5kN 1 open price -
BC037T 395g 1 open price 【Charger】AC100V
BPL1825 400 1 open price 【Battery Pack】Li-ion batteries・DC18V、2.5Ah、practical charging 60mins、full charging 65mins
BPL1850 700g open price 【Battery Pack】Li-ion batteries・DC18V、5.0Ah、practical charging 125mins、full charging 135mins
BPL1820 400g 1 open price * This is no longer produced.→BPL1825
BPL1840 700g 1 open price * This is no longer produced.→BPL1850

Products Video

!IMPORTANT SAFETY INSTRUCTIONS

・Be sure to read the instruction Manual and important Usage Advisery carefully and make sure that you understand them thoroughly before using this tool.

!CAUTIONS ON INSCRIBED VALUES

※ Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
※ Specifications may be changed for improvement of the product without prior notices.
※ Listed prices do not include VAT. Please ask our distributor in case of purchases.
